US Stock SFX-M24HR Oil Spraying Electric Tapping Machine Univer Tapping Arm Tapping Range M4-M20(Copper, Stainless Steel) M4-M24(Aluminum)

US Stock Oil Spraying 110V SFX-M24HR Electric Tapping Machine Universal Tapping Arm Equipped with One Set TC820 ANSI Tapping Collets

Model: SFX-M24HR with Oil Spraying System

Voltage: 110V/220V

Rated Power: 1200W

Spindle Speed: 0-550r/min high speed

Tapping Range: M4-M20(Copper, Stainless Steel) M4-M24(Aluminum)

Working Range: Horizontal 1180mm   Vertical 400mm adjustable

Weight: 49kg

Features and Advantages:

1.Auto Oiling and Blowing, Reduce the impact of chips and slag on screw thread accuracy.

2.Oil Spraying Atomizer: Good Controllability, Durability, Adjustable Oil Spraying Volume.

3.Three Tapping Mode: Manual Tapping, Automatic Tapping, Deep Hole Intermittent Tapping.

4.HD human-machine interface. Adjustable forward and backward speed. Imported servo motor and strong output.

5.Enhanced Reducer, Gear Durable; Intelligent Control System, Stable and Reliable Program; Universal Head, Vertical and Horizontal Tapping in Any Direction.

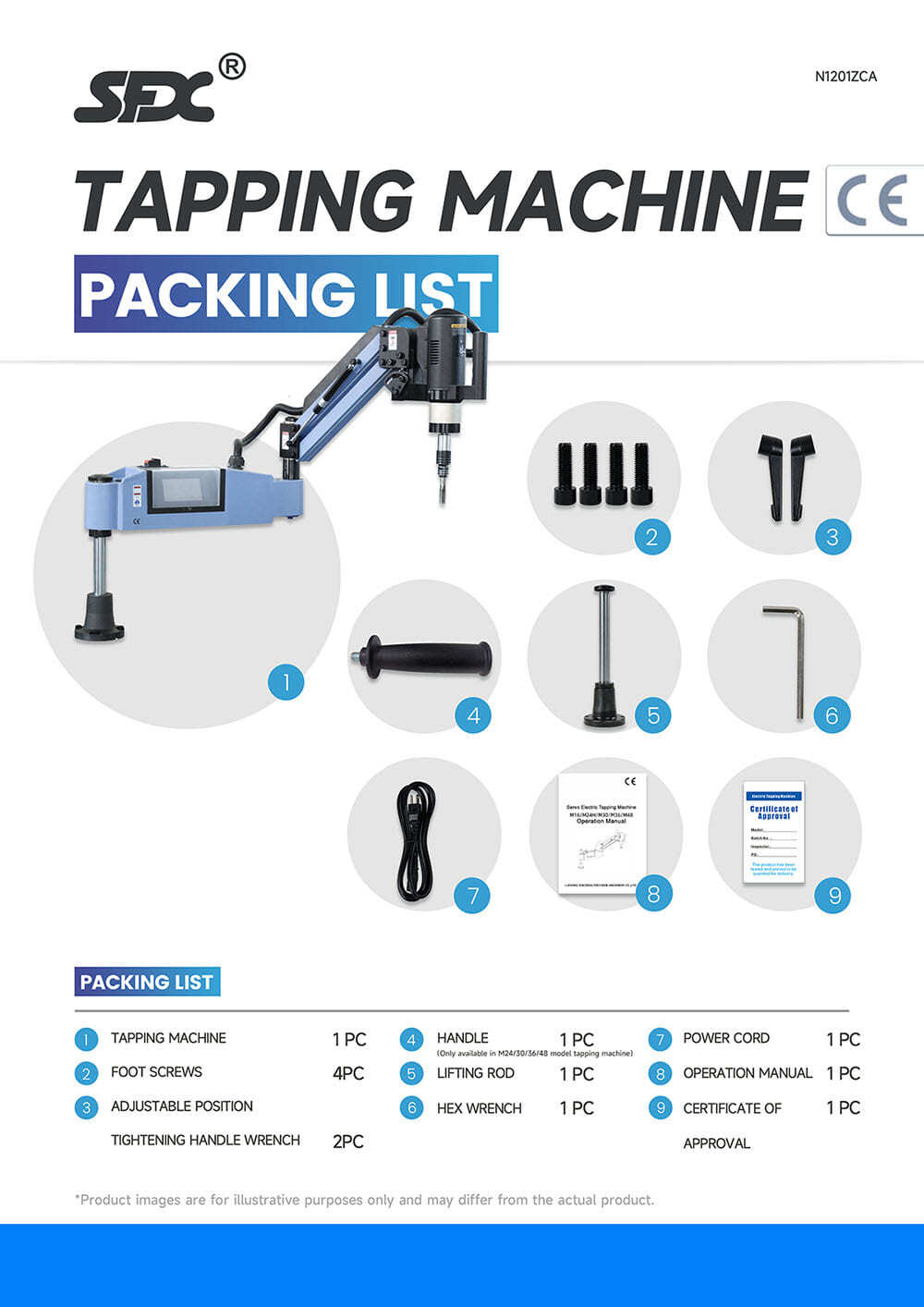

6.Standard Accessories: Tapping Arm(One set), Servo Motor and Reducer(One Set), Tap Holder M2-M20(One Set), Universal Joint(Tapping for a Vertical/Horizontal)

7.Optional Accessories: Magnetic Base(Weight: 18kg, Magnetic Power: 600kg) Realize Tapping in any Range, Moving Workbench

8.Applicable Materials: Aluminum, Copper, A3 Steel, Cast Iron, Pig Iron, Q235, S136, Mold Steel, 718H, 40Cr, Stainless Steel and Other Metal Materials.

9.1 Year Warranty, Offer Technical and After Sales Service.

Four Standard Tapping Chucks for SFX-M24HR Electric Tapping Machine:

ISO Standard: M4 M5 M6-M8 M10 M12 M14 M16 M18-M20 (8PCS in Total)

JIS Standard: M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 (10PCS in Total)

DIN Standard: M4 M5-M6 M8 M10 M12 M14 M16 M18 M20 (9PCS in Total)

TC820 ANSI Tapping Collets(10pcs): 8,5/32", 10,3/16", 14,1/4", 5/16", 3/8", 1/2", 9/16", 5/8", 11/16", 13/16"

Workbench for Tapping Arm Machine

TC820 ANSI Tapping ColletsTC820 ANSI Tapping ColletsTC820 ANSI Tapping Collets
